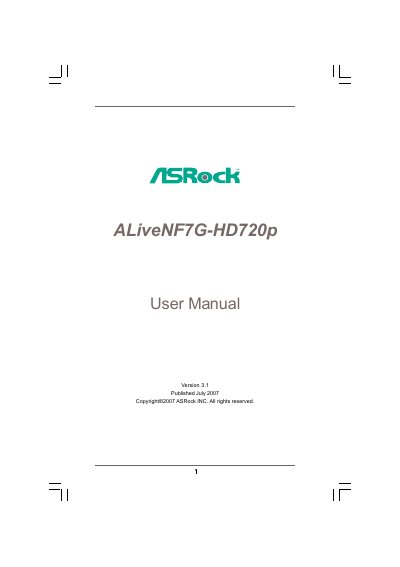

This document is the user manual for 11111 ALiveNF7G-HD720p, version 3.1, published in July 2007, copyrighted by ASRock INC. The manual provides specifications and information about the product.
This manual covers everything needed to install and configure the ASRock ALiveNF7G‑HD720p motherboard, including package contents, minimum hardware requirements, and step‑by‑step installation procedures for CPU, memory, storage, and peripherals. It also details BIOS setup options, overclocking features, and software support via the included support CD.
Additional sections explain the integrated NVIDIA graphics, audio, networking, and RAID capabilities, as well as safety warnings, FCC compliance, and contact information for further assistance.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in, 24.4 cm x 24.4 cm) |
|---|---|
| CPU Socket | AM2 for AMD Athlon 64FX/64X2/X2/64 and Sempron |
| Chipset | NVIDIA GeForce 7050 / nForce 630A MCP |
| Memory | 4 DDRII DIMM slots, DDRII800/667/533, max 8 GB |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| SATA | 4 × Serial ATAII 3.0 Gb/s ports, RAID 0/1/0+1/5/JBOD, NCQ, AHCI, Hot‑Plug |
It uses an AM2 socket that supports AMD Athlon 64FX, 64X2, X2, 64 and Sempron processors.
The board provides four DDRII DIMM slots supporting DDRII800/667/533 with a maximum capacity of 8 GB.
Yes, the DVI‑D port supports HDCP and can be used with a DVI‑to‑HDMI adapter for HDMI output.
