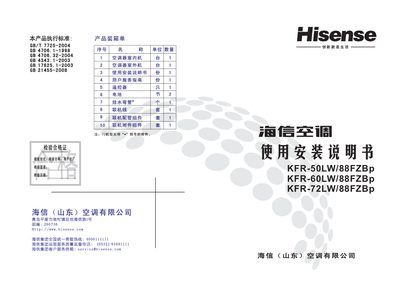

Hisense KFR-50LW/88FZBp KFR-60LW/88FZBp KFR-72LW/88FZBp Air Conditioner User Manual

This file is an instruction manual for KFR-50LW/88FZBp, KFR-60LW/88FZBp and KFR-72LW/88FZBp air conditioners.

Brand: Hisense
Category: Air conditioner
Document type: User Manual
Language: Chinese
Pages: 27
File format: PDF
File size: 14.7 MB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: KFR-88FZBP, KFR-50LW, KFR-60LW, KFR-72LW
MD5 checksum: FD91929BF50CF58C98035F79FAE0019C
PDF: Hisense KFR-50LW/88FZBp KFR-60LW/88FZBp KFR-72LW/88FZBp Air Conditioner User Manual PDF

About this manual

The manual explains how to safely install the indoor and outdoor units, connect refrigerant piping, and verify electrical grounding. It emphasizes that only qualified technicians should perform the installation and that the power supply must match the rating on the nameplate.

Operating instructions cover remote‑control functions, display panel symbols, and mode selection such as cooling, heating, de‑humidification, and air‑purification. The document also includes a troubleshooting guide, fault‑diagnosis messages, and a full set of technical specifications for each model. This manual is written in Chinese.

What's inside

Safety Instructions
Installation Guidelines
Remote Control Operation
Display Panel Symbols
Mode Selection (Cooling, Heating, De‑humidify, Air Purify)
Technical Specifications
Troubleshooting and Fault Diagnosis
Warranty and Service Information

Specifications

Rated Power Voltage	AC 220V (all models)
Rated Cooling Input Power (kW)	1.40 / 1.70 / 2.30 kW (minimum/medium/maximum)

Frequently asked questions

How do I start the cooling mode using the remote control?

Turn on the power, switch the remote to the cooling mode, press the run/stop button, and set the desired temperature.

What does the “air‑purify” indicator on the display panel mean?

It lights up when the cold‑plasma air‑purification function is active, indicating that harmful indoor substances are being removed.
