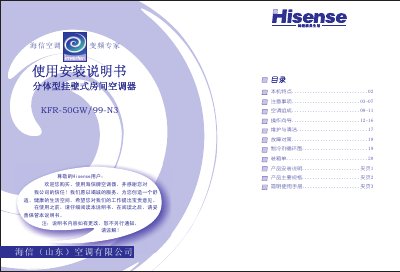

Hisense KFR-50GW/99-N3 air conditioner instruction manual, introduces the product features, precautions, air conditioner components, operation guide, maintenance and cleaning, troubleshooting and other contents
The manual covers all steps required to install the Hisense KFR-50GW/99-N3 split‑type wall‑mounted heat‑pump air conditioner, including site preparation, mounting of indoor and outdoor units, refrigerant pipe routing, electrical connections, and final commissioning. Detailed safety warnings, cautions, and maintenance tips are included to ensure safe operation and longevity of the unit.
Key sections explain the composition of the indoor and outdoor units, operation guide, troubleshooting, and a concise user handbook. The document also provides the product’s main specifications and a checklist of accessories supplied with the system. This manual is written in Chinese.
| Dimensions (mm) L×W×H | 830×287×644 |
|---|
The total pipe length may be between 7.5 m and 15 m; for this range an additional 15 g/m of refrigerant should be charged.
The unit includes a 24‑hour on/off timer that can be programmed to start or stop the air conditioner at the desired times.
