This document introduces the features and characteristics of Hisense air conditioners, including automatic and 3-level wind speed, sleep energy-saving function, ultra-quiet operation, microcomputer control, automatic wind direction control, 24-hour on/off timer, powerful dehumidification, wide voltage operation, and green environmental protection.

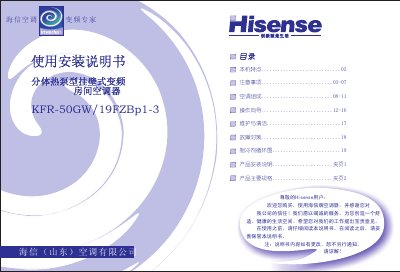

The document explains how to safely install and use the Hisense KFR-50GW/19FZBp1-3 split heat pump wall‑mounted air conditioner. It includes product features, safety warnings, and detailed installation steps for both indoor and outdoor units.
Key sections cover operation guidance, regular cleaning, maintenance procedures, fault troubleshooting, refrigerant circuit diagram, and specifications. Safety precautions such as proper grounding, qualified electrician work, and power disconnection before any work are emphasized throughout. This manual is written in Chinese.
| Rated power supply voltage | 220 V AC |
|---|---|
| Rated cooling capacity (min/mid/max) | 1.5 kW / 2.5 kW / 5.8 kW |
| Rated heating capacity (min/mid/max) | 1.5 kW / 3.0 kW / 8.5 kW |
| Indoor unit noise (min/max) | 35 dB(A) / 47 dB(A) |
Immediately stop the unit, unplug the power plug, and contact Hisense after‑sales service or an authorized service center; do not continue running the unit to avoid further damage or safety hazards.
