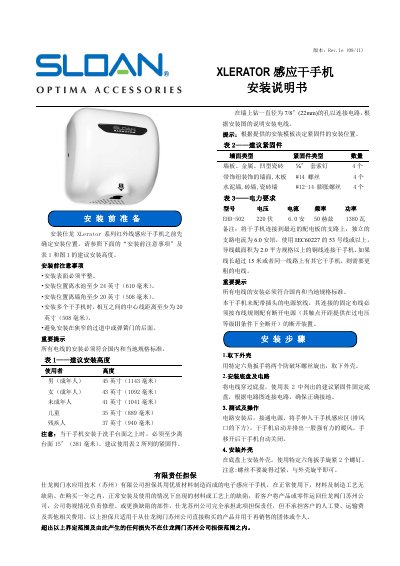

This document is the installation manual for XLERATOR sensor hand dryer, which introduces the installation location, installation height, installation steps, and power requirements, etc.
This manual provides step‑by‑step instructions for installing the Sloan EHD‑502 infrared sensor hand dryer. It details site preparation requirements, recommended mounting heights for different users, and the types of fasteners and wiring needed to ensure a safe and reliable installation.
The guide also includes wiring diagrams, operation instructions, cleaning and maintenance tips, troubleshooting procedures, and warranty information, helping installers and service technicians complete the installation and keep the dryer operating efficiently. This manual is written in Chinese.
| Minimum distance from sink | 24 inches (610 mm) |
|---|---|
| Minimum distance between units | 20 inches (508 mm) |
| Recommended height for adult male | 45 inches (1143 mm) |
The dryer operates on 220 V and draws 6.0 A.
It must be at least 24 inches (610 mm) away from the sink.
The suggested height is 45 inches (1143 mm).
Use IEC60227 53‑grade or higher copper wire with a cross‑section of at least 2.0 mm².
