The Sloan SOLIS‑8186 light‑energy sensor flush valve provides 0.5 L efficient flush, low noise, ADA compliance, and battery‑backed operation.

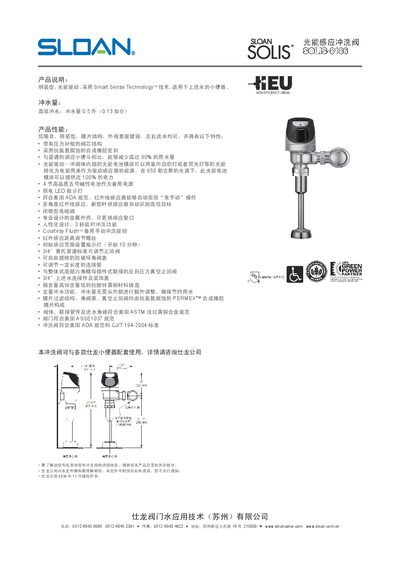

The SOLIS‑8186 is a surface‑mount, light‑energy‑driven flush valve designed for urinals with top‑entry water supply. It delivers a high‑efficiency 0.5 L (0.13 gal) flush while reducing water use by up to 80 %. The valve features pressure‑compensated valve core, chrome‑plated housing, anti‑chloramine synthetic‑rubber seals, and a multi‑angle infrared sensor with a lock‑type solenoid.
The unit complies with US ADA, ASTM, and ASSE1037 standards and includes a backup power source of four AA alkaline batteries, a weak‑current LED indicator, and adjustable sensor distance. Installation accessories such as a 3/4" standard check valve, anti‑tamper angle‑valve cover, and adjustable inlet connections are provided. For more information, contact Sloan Valve Water Application Technology (Suzhou) Co., Ltd. This manual is written in Chinese.
| Flush volume | 0.5 L (0.13 gal) |
|---|---|
| Water‑saving potential | up to 80 % reduction |
| Backup power source | 4 × AA alkaline batteries |
| LED indicator | weak‑current LED |
| ADA compliance | Yes |
It flushes 0.5 L (0.13 gal) per actuation.
Yes, it complies with US ADA specifications.
It can reduce water consumption by up to 80 % compared with conventional sensor urinals.
