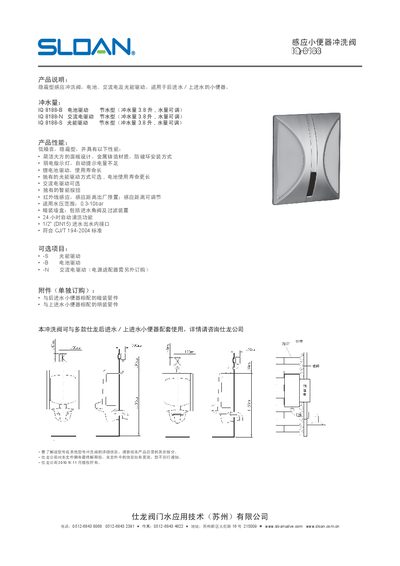

This product is a sensor urinal flush valve, using battery, AC and solar power drive, suitable for back-in-water / top-in-water urinals.
The IQ‑8188 series includes three variants (B, N, S) of the Sloan rinse valve, each delivering a flush volume of 3.8 units. The valve is designed for use with urinals and can be installed for both supply and discharge water connections.
Key features include low noise operation, metal construction, indicator lights for low water level, a 24‑hour automatic cleaning function, DN15 inlet connection, and compliance with CJT 194‑2004 standards. Optional accessories and installation notes are also provided. This manual is written in Japanese.
| Flush volume | 3.8 (unit unspecified) |
|---|---|
| Water pressure range | 0.3‑10 bar |
| Inlet connection size | DN15 |
| Compliance | CJT 194‑2004 |
| Automatic cleaning function | 24 hour operation |
| Construction material | Metal |
The rinse valve provides a flush volume of 3.8 (unit not specified).
It operates with water pressure between 0.3 and 10 bar.
The inlet connection size is DN15.
Yes, it includes a 24‑hour automatic cleaning function.
