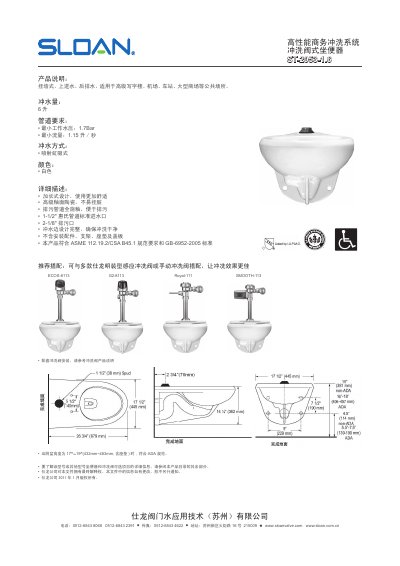

ST-2053-1.6 Sloan wall mounted flush valve toilet, top water in, rear water out, suitable for high-end office buildings, airports, stations, large shopping malls and other public places.
The ST-2053-1.6 high‑performance business rinse system is a wall‑mounted, top‑inlet, rear‑drain toilet designed for premium office buildings, airports, stations and large shopping centers. It delivers a 6 L flush and meets ASME 112.19.2/CSA B45.1 and GB‑6952‑2005 standards.
Key features include an extended design for comfort, premium glazed ceramic, fully glazed waste pipe, jet‑siphon flushing, white colour, 1‑1/2" inlet and 2‑1/8" waste outlet, and compliance with ADA height requirements. The valve does not include installation hardware, brackets, seat or cover. This manual is written in Chinese.
| Minimum working water pressure | 1.7 Bar |
|---|---|
| Minimum flow rate | 1.15 L/s |
| Flush type | Jet siphon |
| Inlet size | 1‑1/2" |
| Drain size | 2‑1/8" |
| ADA compliance (toilet height) | 17"–19" (432 mm–483 mm) |
The valve requires at least 1.7 Bar water pressure and a flow of 1.15 L/s.
It uses a jet‑siphon flushing mechanism.
Yes, it meets ADA height requirements for the toilet bowl.
