Start here

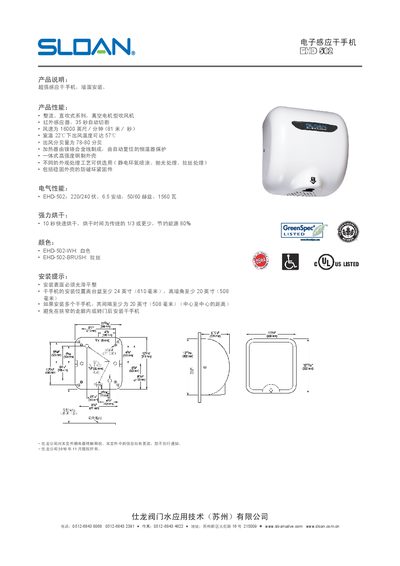

Sloan EHD-502 Hand Dryer Manual
The EHD-502 is a wall‑mounted, sensor‑activated hand dryer designed for high‑speed drying. It features a powerful airflow, high temperature output, and a durable steel housing with various surface finishes.
The manual includes electrical ratings, performance data such as airflow speed, noise level, and drying time, as well as installation clearances and color options for the unit. This manual is written in Chinese.
Sloan EHD-502 specifications
| Minimum distance from sink | 24 inches (610 mm) |
|---|---|
| Minimum distance between units | 20 inches (508 mm) |
| Recommended height for adult male | 45 inches (1143 mm) |
All Sloan EHD-502 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage and current does the EHD‑502 require?
The dryer operates on 220 V and draws 6.0 A.
How far must the dryer be installed from the sink?
It must be at least 24 inches (610 mm) away from the sink.
How long does it take to dry hands with the EHD-502?
The dryer provides fast drying in 10 seconds, which is about one‑third the time of traditional hand dryers.
What is the airflow speed of the EHD-502?
The unit delivers an airflow of 16 000 ft/min (approximately 81 m/s).
