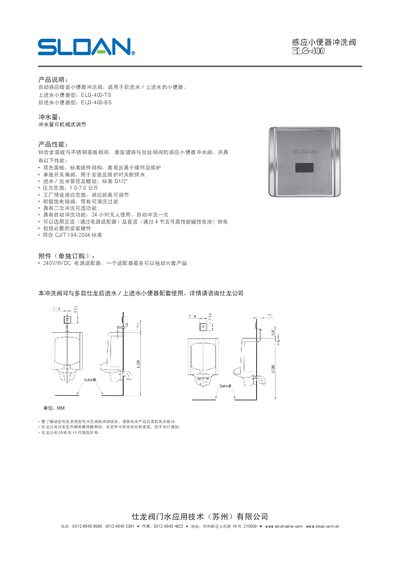

ELG-400 urinal flush valve is suitable for rear-inlet / upper-inlet urinals. The flush volume can be adjusted mechanically.
The ELG-400 series rinse valve (models ELG-400-TS and ELG-400-BS) is designed for automatic flushing of urinals. It features a dual‑color panel, single‑valve operation, and a 24‑hour automatic flush cycle.
Installation requires a 240 V/6 VDC power source, G1 pipe connections, and includes all necessary hardware. The valve operates within a pressure range of 1.0‑7.0 bar and complies with CJT 194‑2004 standards. This manual is written in Japanese.
| Pressure range | 1.0‑7.0 bar |
|---|---|
| Supply voltage | 240 V / 6 VDC |
| Pipe diameter / thread | G1 |
| Compliance standard | CJT 194‑2004 |
| Automatic flush | Yes, 24 h cycle |
The valve operates between 1.0 and 7.0 bar.
It can be powered from 240 V AC or 6 VDC.
Yes, it provides an automatic flush every 24 hours.
Both inlet and outlet use a G1 pipe size.
