ST-2063-1.6 High Performance Commercial Flush System Flush Valve Toilet, hung wall, rear water inlet, rear drainage, suitable for high-end office buildings, airports, stations, large shopping malls and other public places.

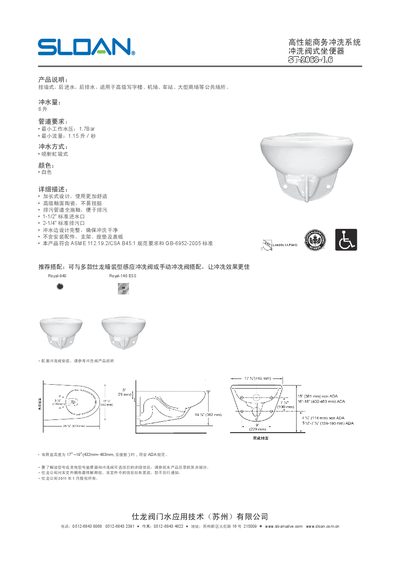

The manual describes the high‑performance commercial rinse valve, including its intended use for public facilities and large‑scale applications. It lists pipe requirements such as a minimum working pressure of 1.7 Bar and a minimum flow rate of 1.15 L/s, and details the valve’s color options and design features.
Additional sections cover recommended pairings with other flush systems, installation guidance, dimensional data for ADA and non‑ADA configurations, and compliance with ASME, CSA, and GB standards. The document notes that installation accessories, brackets, and mounting plates are not included. This manual is written in Japanese.
| Minimum working water pressure | 1.7 Bar |
|---|---|
| Minimum flow rate | 1.15 L/s |
| Size (non‑ADA) | 15" (381 mm) |
| Size (ADA) | 16"‑18" (432‑483 mm) |
| Size (non‑ADA) | 4" (114 mm) |
| Size (ADA) | 5"‑7" (139‑190 mm) |
| Standards compliance | ASME 112.19.2, CSA B45.1, GB‑6952‑2005 |
The valve requires a minimum working water pressure of 1.7 Bar.
A minimum flow rate of 1.15 L/s is required.
It complies with ASME 112.19.2, CSA B45.1, and GB‑6952‑2005.
Available sizes include 15" (381 mm) non‑ADA, 16"‑18" (432‑483 mm) ADA, 4" (114 mm) non‑ADA, and 5"‑7" (139‑190 mm) ADA.
