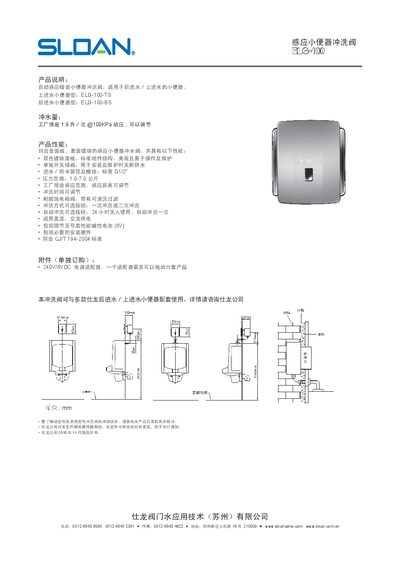

ELG-100 Inductive Urinal Flush Valve is an automatic inductive concealed urinal flush valve, suitable for rear inlet / top inlet urinal.
The ELG-100 series rinse valve is designed for single‑flush or dual‑flush toilet applications. It features a dual‑color panel, easy‑install valve body, and compliance with CJT 194‑2004 standards. The valve supports both 1‑stage and 2‑stage flushing with a pressure range of 1.0‑7.0 bar.
The manual includes installation hardware, wiring requirements (240 V/6 VDC), pipe connection details (G1/2"), and safety guidelines. It also lists performance data such as a flow rate of 1.9 L/min at 100 kPa and provides contact information for further support. This manual is written in Japanese.
| Pressure range | 1.0‑7.0 bar |
|---|---|
| Water flow rate | 1.9 L/min at 100 kPa |
| Pipe connection size | G1/2" |
| Power supply | 240 V / 6 VDC |
| Compliance | CJT 194‑2004 |
The valve operates within a pressure range of 1.0 to 7.0 bar.
It delivers a flow rate of 1.9 L/min when supplied with 100 kPa pressure.
The valve requires a 240 V or 6 VDC power source.
It uses a standard G1/2" pipe connection.
