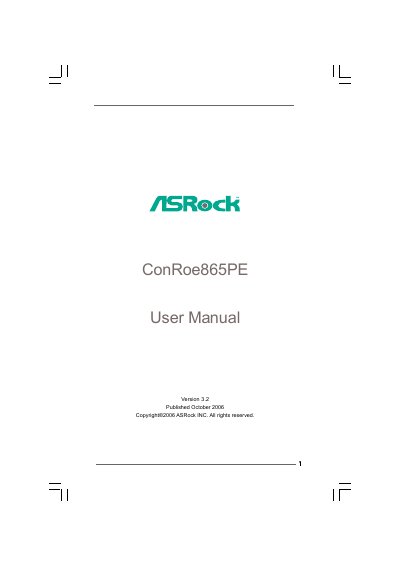

This manual introduces the features of the ConRoe865PE motherboard, mainly including the overall appearance of the motherboard, interfaces, jumpers, power interfaces, BIOS settings, and so on.
This manual introduces the ASRock ConRoe865PE motherboard, covering package contents, hardware installation steps, and safety precautions. It serves as a reference for assembling the system, configuring BIOS settings, and accessing the support CD utilities.
Key sections include detailed installation procedures for CPU, memory, and expansion cards, BIOS configuration options, specifications of the board’s components, and instructions for installing supported Windows operating systems. The document also lists rear I/O connectors, power requirements, and troubleshooting tips.
| Form Factor | ATX 12.0-in x 9.0-in (30.5 cm x 22.9 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Intel 865PE / 865G (Northbridge) + Intel ICH5 (Southbridge) |
| Expansion Slots | 5 PCI slots, 1 AGP slot |
| Audio Codec | Realtek ALC850 7.1‑channel |
| LAN | Realtek PCI LAN 8101L, 10/100 Mbps Ethernet |
| SATA Connectors | 2 × Serial ATA 1.5 Gb/s connectors |
| IDE Connectors | 2 × ATA100 IDE connectors |
| BIOS | 4 Mb AMI BIOS |
The board uses an LGA 775 socket for Intel processors.
It supports Microsoft Windows 98SE, ME, 2000, XP, and XP 64‑bit.
