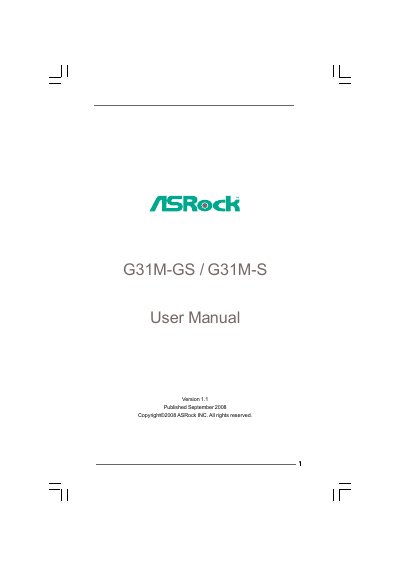

G31M-GS / G31M-S User Manual is a manual for ASRock G31M-GS / G31M-S motherboard.
This manual introduces the ASRock G31M-GS/G31M-S Micro ATX motherboard, describing its features, package contents, and overall design. It guides users through hardware installation, BIOS configuration, and software support.
Key sections cover package contents, detailed specifications, motherboard layout, I/O panel description, step‑by‑step installation of CPU, memory and expansion cards, BIOS setup utility, and instructions for using the support CD and operating system installation.
| Form Factor | Micro ATX (9.6" x 7.5") |
|---|---|
| CPU Socket | LGA 775 for Intel® Core™ 2 series |
| Memory Slots | 2 x DDR2 DIMM slots |
| Maximum Memory Capacity | 8 GB |
| Expansion Slots | 1 x PCI Express x16, 1 x PCI Express x1, 2 x PCI |
| Graphics | Intel® Graphics Media Accelerator 3100 |
| Audio Codec | Realtek ALC662 |
| LAN | Realtek RTL8111DL Gigabit Ethernet (10/100/1000 Mb/s) |
| BIOS | 4 Mb AMI BIOS |
The board provides four SATAII 3.0 Gb/s connectors.
It uses a 4 Mb AMI BIOS.
It supports Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
The motherboard can hold up to 8 GB of DDR2 memory.
