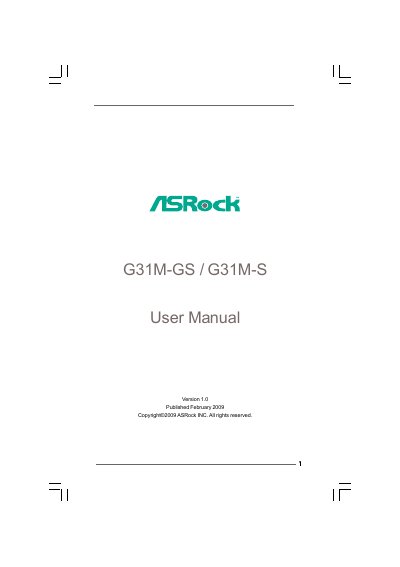

G31M-GS / G31M-S User Manual, introduces the features of the motherboard, installation and use methods
This manual covers everything needed to install and configure the ASRock G31M-GS / G31M-S Micro ATX motherboard, including hardware installation, BIOS configuration, and software support. It contains detailed sections on CPU installation, memory modules, expansion slots, I/O panel, and safety cautions.
The document also lists the technical specifications of the board, such as supported processors, memory capacity, graphics, audio, LAN, and storage interfaces, and provides guidance for operating system installation and driver setup via the Support CD.
| Form Factor | Micro ATX (9.6" x 7.5") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2, Pentium Dual Core, Celeron Dual Core |
| Expansion Slots | 1 PCIe x16, 1 PCIe x1, 2 PCI slots |
| Graphics | Intel Graphics Media Accelerator 3100 |
| Audio | 5.1‑channel HD Audio (VIA VT1708S codec) |
| LAN | Realtek RTL8111DL Gigabit (GS) or RTL8103EL/8102EL 10/100 (S) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s ports |
| BIOS | 4 Mb AMI BIOS |
It uses an LGA 775 socket.
The motherboard provides four SATAII 3.0 Gb/s connectors.
The board supports up to 8 GB of DDR2 memory.
