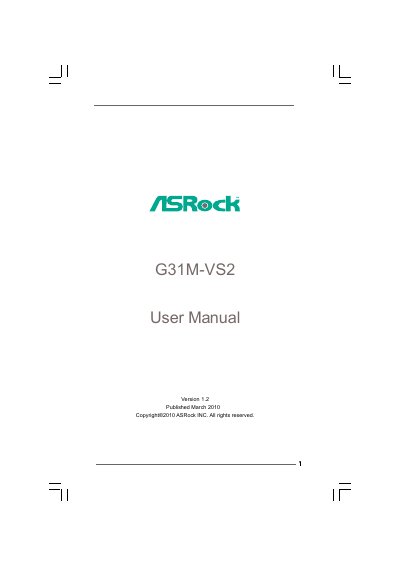

This manual is the user manual for ASRock G31M-VS2 motherboard.
This user manual introduces the ASRock G31M-VS2 motherboard, covering its features, specifications, and the components included in the package. It guides users through hardware installation, BIOS configuration, and software support.
Key sections include detailed specifications, motherboard layout and I/O panel, step‑by‑step installation of CPU, memory, and expansion cards, BIOS setup utility with advanced options, and instructions for using the support CD utilities.
| Form Factor | Micro ATX (8.9‑in x 6.7‑in) |
|---|---|
| CPU Socket | LGA 775 |
| Memory Slots | 2 DDR2 DIMM slots, up to 8 GB |
| Maximum Memory Capacity | 8 GB |
| Chipset | Northbridge Intel® G31, Southbridge Intel® ICH7 |
| Graphics | Intel® Graphics Media Accelerator 3100 |
| Audio | 5.1 CH HD Audio (VIA® VT1705 Codec) |
| LAN | Realtek PCIE x1 LAN 8103EL / 8102EL |
| SATA Connectors | 4 x SATAII 3.0 Gb/s ports |
| BIOS | 4 Mb AMI BIOS |
It provides two DDR2 DIMM slots that can hold up to 8 GB of system memory.
The board uses an LGA 775 socket compatible with various Intel® Core 2 and Pentium Dual‑Core processors.
