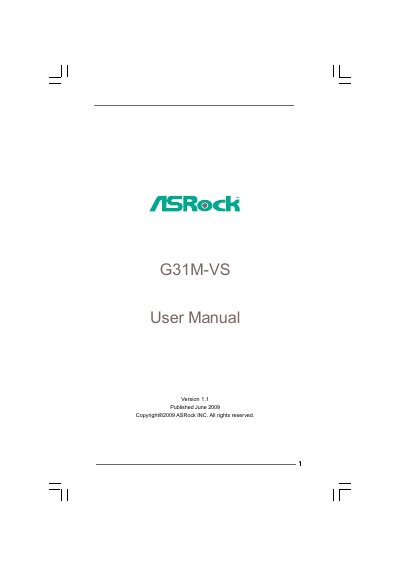

This is the user manual for G31M-VS.
This manual introduces the ASRock G31M-VS motherboard, a Micro‑ATX board designed for Intel LGA‑775 processors. It outlines the package contents, key specifications, and the layout of the board and I/O panel.
The guide walks you through hardware installation, BIOS configuration, and software support, including driver installation from the support CD. It also covers safety notices, overclocking cautions, and troubleshooting tips.
| Form Factor | Micro ATX (8.8" x 6.7") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPU Power | 65 W |
| Memory Slots | 2 DDR2 DIMM slots |
| Maximum Memory Capacity | 8 GB |
| Northbridge Chipset | Intel G31 |
| Southbridge Chipset | Intel ICH7 |
| PCI Express Slot | 1 x PCI Express x16 |
| Graphics | Intel GMA 3100 |
| Audio Codec | VIA VT1708S / VT1705 |
| LAN Controller | Realtek PCIE x1 8103EL / 8102EL |
| SATA Connectors | 2 x SATAII 3.0 Gb/s |
It provides two DDR2 DIMM slots for system memory.
The board uses an LGA 775 socket compatible with Intel Dual‑Core processors.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
