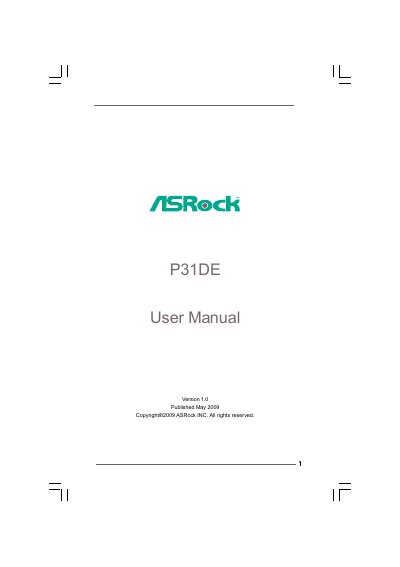

P31DE User Manual
This manual introduces the ASRock P31DE motherboard, its features, and the package contents. It guides users through hardware installation, including CPU, memory, expansion slots, and connectors, and explains BIOS configuration and overclocking options.
Later sections cover BIOS setup utility, hardware health monitoring, boot and security settings, and software support such as operating system installation and driver CD usage. The document also lists technical specifications and provides troubleshooting information.
| Form Factor | ATX 12.0" x 7.5" (30.5 cm x 19.1 cm) |
|---|---|
| CPU Socket | LGA 775 for Intel® Core2 series |
| Chipset | Intel® G31 & ICH7 |
| Memory Slots | 2 x DDR2 DIMM slots, max 8 GB |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 x PCI‑Express x16, 2 x PCI‑Express x1, 3 x PCI |
| Graphics | Intel® Graphics Media Accelerator 3100 |
| Audio | 5.1‑channel Realtek ALC662 codec |
| LAN | Gigabit LAN (Realtek RTL8111DL) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s ports |
| USB Ports | 4 x USB 2.0 ports |
Visit the ASRock website at http://www.asrock.com for the latest drivers, BIOS updates, and support details.
In the BIOS Setup Utility, set the "Boot From Onboard LAN" option to Enabled.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
