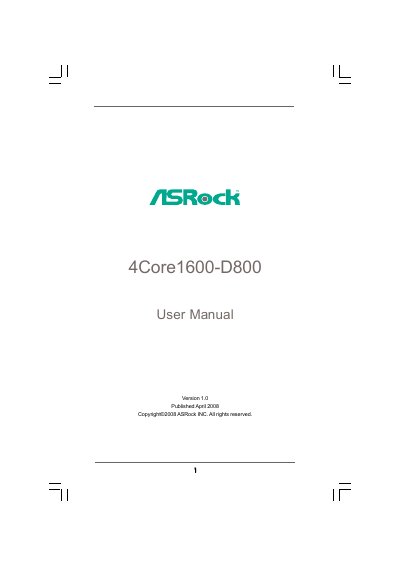

4Core1600-D800 User Manual, Describe the features and characteristics of the products.
This manual introduces the ASRock 4Core1600-D800 Micro ATX motherboard, its layout, and the components included in the package. It guides users through hardware installation, jumper settings, and connecting peripherals.
Later sections cover BIOS setup, security options, boot configuration, and the support CD utilities, along with detailed technical specifications such as CPU support, memory capacity, and expansion slots.
| Form Factor | Micro ATX (9.6 in x 8.4 in) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2 Extreme/Quad/Duo, Pentium Dual Core, Celeron (FSB 800‑1600 MHz) |
| Chipset | Northbridge Intel G31, Southbridge Intel ICH7 |
| LAN | Realtek 8102E, 10/100 Mbps, Wake‑On‑LAN |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
It uses an Intel G31 northbridge and an Intel ICH7 southbridge.
A Realtek PCIE x1 LAN 8102E controller providing 10/100 Mbps Ethernet with Wake‑On‑LAN support.
