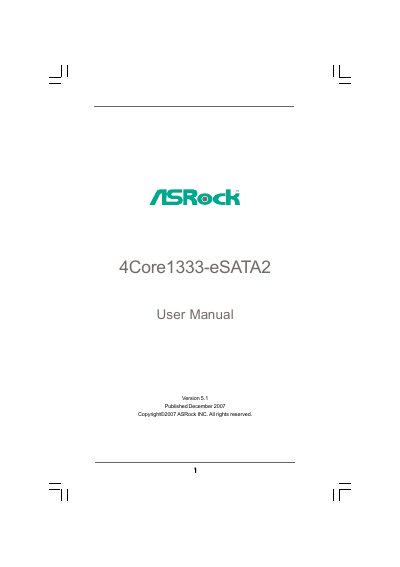

4Core1333-eSATA2 User Manual
This manual guides users through the hardware installation of the ASRock 4Core1333-eSATA2 ATX motherboard, including CPU, memory, storage, and peripheral connections. It also covers BIOS configuration, overclocking cautions, and software support via the included support CD.
Additional sections detail the motherboard layout, connector pin‑outs, and troubleshooting tips, helping both system integrators and end‑users configure Windows operating systems and enable advanced features such as CrossFire™ and eSATAII.
| Form Factor | ATX (12.0 in x 9.0 in) |
|---|---|
| Chipset | Northbridge: Intel® P31/G31, Southbridge: Intel® ICH7R |
| SATAII Connectors | 4 x SATAII 3.0 Gb/s (RAID supported) |
| eSATAII Connector | 1 x eSATAII 3.0 Gb/s (shared with 1 SATAII) |
| PCI Express Slots | 1 x PCIe x16, 1 x AGP Express (PCIe x4), 1 x PCIe x1, 3 x PCI |
| LAN | Gigabit Ethernet (Realtek RTL8111B/C) |
Yes, the four SATAII connectors support RAID 0, 1, 10, 5 and Intel Matrix Storage.
It is an ATX form factor measuring 12.0 in × 9.0 in (30.5 cm × 22.9 cm).
