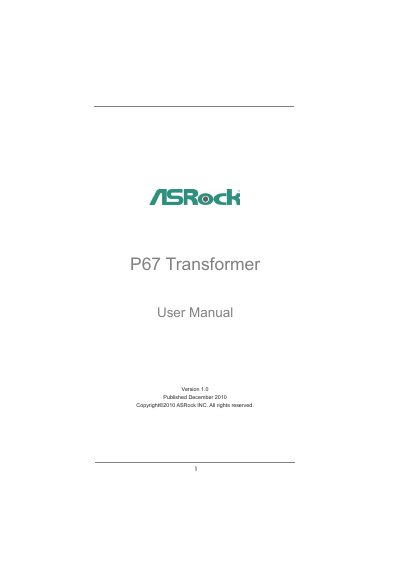

This document is the user manual for ASRock's P67 Transformer. It provides information on how to use the transformer and includes copyright notice, disclaimer, and product information.
This manual guides users through installing the ASRock P67 Transformer motherboard, configuring the UEFI BIOS, and setting up hardware components such as CPU, memory, storage, and peripherals. It also includes safety notices, warranty information, and troubleshooting tips.
Key sections cover detailed specifications, motherboard layout, I/O panel description, step‑by‑step installation procedures, BIOS setup screens, and software support including driver installation and utility usage.
| Form Factor | ATX (12.0" x 8.6") |
|---|---|
| CPU Support | Intel Lynx Point Core i7 / i5 (LGA1156) |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Chipset | Intel® P67 |
| USB 3.0 Ports | 2 x Ready‑to‑Use USB 3.0 |
| SATA3 Connectors | 2 x 6.0 Gb/s SATA3 |
It provides two Ready‑to‑Use USB 3.0 ports.
The ASRock Instant Flash utility can update the BIOS directly from the BIOS screen.
