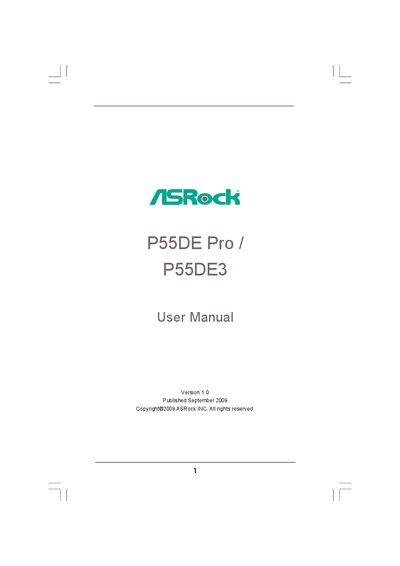

This manual introduces the features and usage of ASRock P55DE Pro / P55DE3 motherboard.
This manual covers everything needed to install and configure the ASRock P55DE Pro/P55DE3 ATX motherboard, including package contents, hardware installation, BIOS settings, and software support. Detailed step‑by‑step guides walk you through CPU, memory, and expansion slot installation, as well as connector wiring and SATA configuration.
Additional sections explain supported operating systems, RAID options, overclocking cautions, and how to use the support CD for drivers and utilities. The BIOS Setup Utility chapter describes each menu, default loading, and saving procedures.
| Form Factor | ATX (12.0" x 8.3") |
|---|---|
| CPU Support | Intel® Core™ i7 and i5 (LGA1156) |
| Chipset | Intel® P55 |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory | 16 GB |
| Audio Codec | Realtek ALC888 (7.1‑channel HD Audio) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s (RAID, NCQ, AHCI, Hot Plug) |
| BIOS | 16 Mb AMI BIOS |
The board supports Microsoft® Windows® 7/7 64‑bit, Vista™/Vista™ 64‑bit, XP and XP 64‑bit.
There are six ready‑to‑use USB 2.0 ports on the rear panel.
The maximum supported system memory is 16 GB.
Yes, the four SATAII connectors support RAID 0, RAID 1, RAID 10, RAID 5 and Intel Matrix Storage.
