ASRock H61M-DGS motherboard uses LGA1155 interface, supports second generation Intel Core i7/i5/i3 processors, supports Intel Turbo Boost 2.0 technology, supports dual channel DDR3 memory technology, supports up to 16GB system capacity, and integrates Intel HD Graphics 2000/3000 graphics chip, supports DirectX 11.

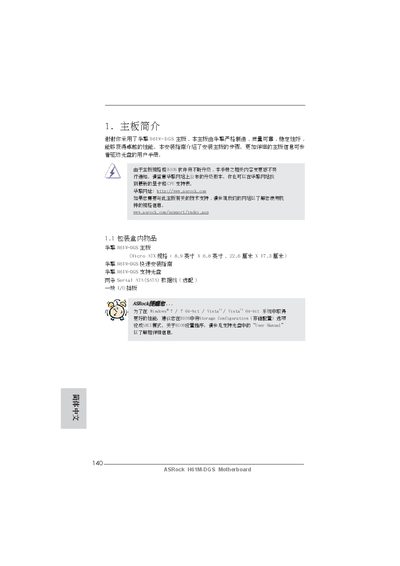

This guide provides step‑by‑step instructions for installing the ASRock H61M-DGS motherboard, including required accessories, mounting procedures and connector layouts. It also explains BIOS configuration, supported operating systems and safety notices.
The document lists the board's technical specifications such as CPU socket, memory support, expansion slots, storage interfaces, audio and networking features, and details the use of ASRock utilities like Extreme Tuning Utility and Instant Flash for BIOS updates. This manual is written in Chinese.
| CPU socket | LGA1155 (2nd‑gen Intel Core i7/i5/i3) |
|---|---|
| SATA ports | 4 × SATA2 (3 Gb/s) with NCQ, AHCI |
| USB ports | 2 × USB 2.0 front, multiple rear USB 2.0 |
| LAN | Realtek RTL8111C Gigabit Ethernet |
| Audio | Realtek ALCG62 5.1‑channel HD Audio |
| BIOS | 32 Mb AMI BIOS, UEFI with GUI |
It provides four SATA2 ports supporting 3 Gb/s transfer rates.
It uses the LGA1155 socket for 2nd‑generation Intel Core i7, i5 and i3 processors.
A Realtek RTL8111C Gigabit Ethernet controller is integrated.
