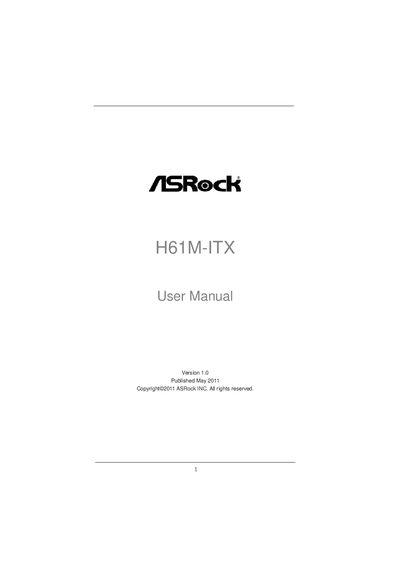

ASRock H61M-ITX motherboard user manual, including features and characteristics of the product.
This manual covers everything needed to install and configure the ASRock H61M-ITX Mini‑ITX motherboard, including package contents, hardware layout, and step‑by‑step installation of CPU, memory, and expansion cards. It also details BIOS/UEFI configuration, driver installation, and software support.
Additional sections explain rear panel connectors, supported operating systems, and special features such as Wake‑On‑LAN, USB 3.0, and overclocking utilities, helping users get the most out of the board.
| Form Factor | Mini‑ITX 6.7" x 6.7" (17.0 cm x 17.0 cm) |
|---|---|
| CPU Support | 2nd Generation Intel® Core™ i7 / i5 / i3, LGA1155 |
| Chipset | Intel® H64 |
| Expansion Slot | 1 x PCI Express 2.0 x16 (blue, x16 mode) |
| Audio Codec | Realtek ALC887, 7.1‑channel HD Audio |
| LAN | Realtek RTL8111E Gigabit Ethernet (10/100/1000 Mb/s) |
The board supports Microsoft Windows 7 / 7 64‑bit, Vista / Vista 64‑bit, and Windows XP / XP 64‑bit.
