ASRock H67M-GE/HT Motherboard is a Micro ATX motherboard that supports second generation Intel Core i7/i5/i3 processors, features a 4+1 power phase design, supports Intel Turbo Boost 2.0 technology, supports K-series unlocked CPUs, and supports Hyper-Threading technology.

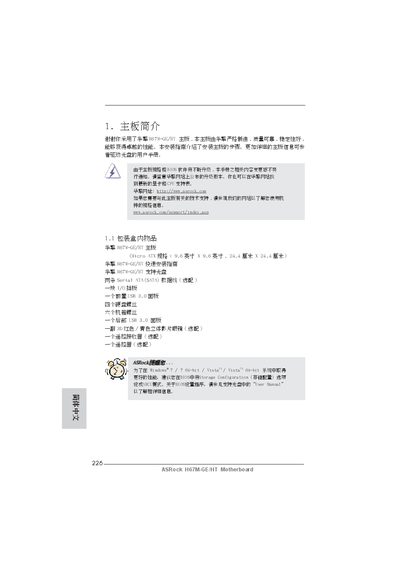

This guide introduces the ASRock H67M-GE/HT Micro‑ATX motherboard, its features, and the required components included in the package. It covers safety precautions, BIOS setup, and links to the latest driver and support information on the ASRock website.
Detailed sections walk the user through CPU installation, CPU fan and heatsink mounting, memory module placement, rear panel I/O connections, and driver installation. The document also includes specifications, BIOS information, and environmental compliance details. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | LGA1155 (2nd gen Intel Core i7/i5/i3) |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
It uses an LGA1155 socket that supports 2nd‑generation Intel Core i7, i5 and i3 processors.
Set the SATA mode to AHCI for optimal performance with Windows 7.
