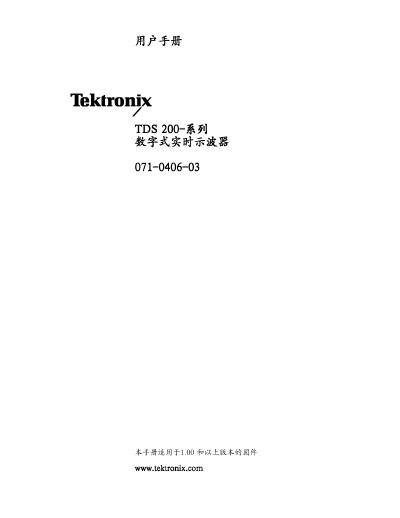

This manual covers general safety requirements, installation steps, and basic operation of the TDS 200 series digital oscilloscope. It includes detailed sections on probe compensation, self‑calibration, trigger configuration, and measurement functions such as automatic measurements and cursor analysis.
Additional chapters describe advanced features like video‑field triggering, waveform‑detail window functions, and the use of expansion modules. Appendices provide technical specifications, accessory lists, and maintenance recommendations. This manual is written in Chinese.
| Supported firmware version | 1.00 and above |
|---|
The manual applies to firmware version 1.00 and later.
