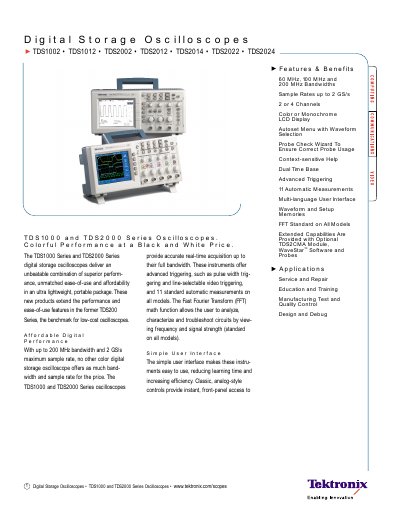

The document introduces the features and characteristics of the TDS1000 and TDS2000 Series digital storage oscilloscopes, including 60 MHz, 100 MHz, and 200 MHz bandwidths, sample rates up to 2 GS/s, 2 or 4 channels, color or monochrome LCD display, autoset menu, probe check wizard, dual time base, advanced triggering, 11 automatic measurements, multi-language user interface, etc. It is suitable for applications such as service and repair, education and training, manufacturing test and quality control, design and debug.
The TDS1000 and TDS2000 series digital storage oscilloscopes combine up to 200 MHz bandwidth, 2 GS/s sample rates and 2‑ or 4‑channel configurations in a lightweight, portable package. Features include advanced triggering, FFT analysis, autoset, probe‑check wizard and a multi‑language user interface.
The handbook lists electrical characteristics, display options, trigger and measurement functions, as well as optional accessories such as the TDS2CMA communications module, various probes, cases, cables and international power plugs. It also contains safety, environmental specifications and contact information for Tektronix worldwide support.
| Channels | 2‑channel (most models) or 4‑channel (TDS1012, TDS2014, TDS2024) |
|---|---|
| Record Length | 2.5 k points on all models |
| Vertical Resolution | 8‑bit |
| Input Impedance | 1 MΩ in parallel with 20 pF |
The TDS1012 is a 2‑channel oscilloscope.
