MSO/DPO2000 series mixed signal oscilloscopes provide up to 200 MHz bandwidth and 1 GS/s sample rate with advanced debug features at an entry-level price. It provides up to 20 channels for analyzing analog and digital signals to quickly find and diagnose problems in complex designs.

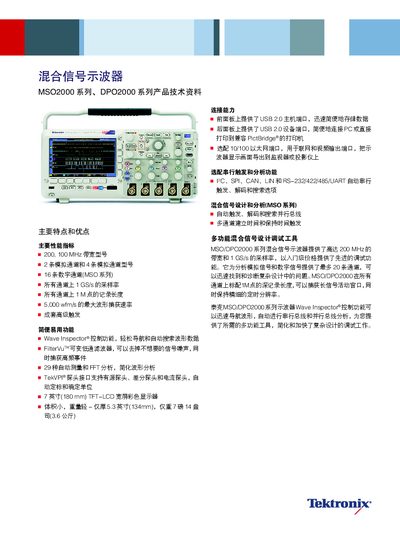

This manual describes the key features, performance specifications and operation of the Tektronix MSO2000 and DPO2000 mixed‑signal oscilloscopes. It covers bandwidth, sampling rate, record length, digital and analog channel counts, and the Wave Inspector navigation tools that simplify waveform analysis.
The document also details connectivity options such as USB host/device ports, optional Ethernet and video output, as well as accessory and probe recommendations, language and service options, and module add‑ons for serial bus triggering and analysis. This manual is written in Chinese.
| Bandwidth | 200 MHz |
|---|---|
| Sampling rate | 1 GS/s |
| Record length | 1 M points |
| Maximum waveform capture rate | 5,000 wfm/s |
| Digital channels | 16 |
| Analog channels | 2 or 4 |
| Display size | 7‑inch (180 mm) TFT‑LCD |
The oscilloscopes can capture up to 5,000 waveforms per second.
It provides 16 digital channels.
A USB 2.0 host port is provided, and an optional 10/100 Ethernet port can be added for network and video output.
The instruments feature a 7‑inch (180 mm) wide‑screen TFT‑LCD display.
