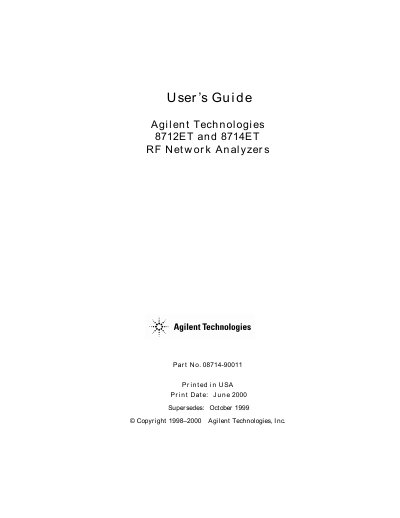

The document is the user's guide for Agilent Technologies 8712ET and 8714ET RF Network Analyzers
This guide introduces the Agilent 8712ET and 8714ET RF network analyzers, describing their integrated RF‑synthesized source, dual‑mode receivers, and display features. It explains how to install the instrument, configure settings, and connect peripherals such as external VGA monitors.
The manual covers measurement procedures for reflection, transmission, power, group delay, and impedance, as well as calibration methods, marker functions, limit testing, and data storage. Safety information, specifications, and preventive maintenance are also provided.
| Frequency resolution | 1 Hz |
|---|---|
| Minimum sweep time | 40 ms (or faster) |
| Maximum output power | +16 dBm |
| Dynamic range | > 100 dB |
| Receiver channels | Three‑channel, dual‑mode |
An external VGA monitor can be connected to the rear panel of the analyzer.
Safety and regulatory information is in Chapter 10, “Safety and Regulatory Information.”
