This series of 500 w linear-regulated dc power supplies is designed to maximize the throughput of DUTs through the manufacturing test process with fast up and down programming time
The Agilent 500 W single‑output GPIB power supplies are linear‑regulated units designed for fast up‑ and down‑programming to maximize test throughput. They include fast protection features such as crowbar and mode‑crossover protection, and can be programmed from the front panel or via SCPI commands over GPIB, with up to 16 units sharing one GPIB address.

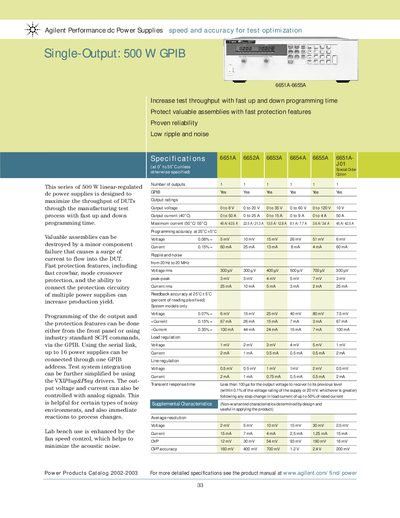

The document provides detailed electrical specifications, ordering options, and accessory part numbers, along with regulatory compliance and physical dimensions. It is an excerpt from the 2002‑2003 Power Products Catalog.
| Programming accuracy (voltage) at 25 °C | 0.08 % + 10 mV |
|---|---|
| Ripple and noise (voltage rms) | 300 µV – 700 µV |
| Transient response time | < 100 µs (within 0.1 % of rating) |
| Input power (full load) | 1,380 VA, 1,100 W |
| Physical size (W × H × D) | 425.5 mm × 132.6 mm × 497.8 mm |
| Net weight | 25 kg |
Up to 16 power supplies can be connected through a single GPIB address.
The output voltage recovers to its previous level in less than 100 µs, staying within 0.1 % of the rated voltage.
The supplies accept AC input voltages of 100 V, 120 V, 220 V, or 240 V at 47 – 63 Hz.
