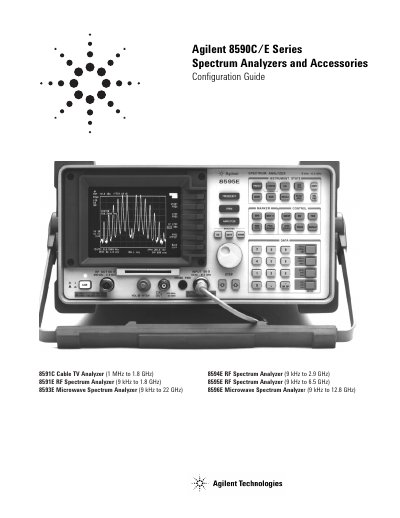

This document is about the configuration guide of Agilent 8590C/E Series Spectrum Analyzers and Accessories.
The Accessories Configuration Guide provides a detailed overview of optional cards, retrofit kits, and peripheral accessories for the Agilent 8590C/E series spectrum analyzers. It explains how to select and order options, shows compatibility constraints, and includes part numbers for each accessory.
Key sections cover option descriptions, ordering schemes, retrofit kit part numbers, scalar and EMC measurement accessories, printer compatibility, and warranty/service notes. The document helps users configure their analyzer to meet specific measurement needs such as TV sync, cable TV, and high‑frequency applications.
| Frequency range (8591C) | 1 MHz to 1.8 GHz |
|---|---|
| Frequency range (8593E) | 9 kHz to 22 GHz |
| Input impedance | 75 Ω |
| Rack height | 8.75 inches |
The rack height is 8.75 inches.
Options 101 and 102 are required for TV sync trigger capability.
The standard warranty is 12 months.
Most HP DeskJet and LaserJet (PCL 3 compatible) printers are compatible.
