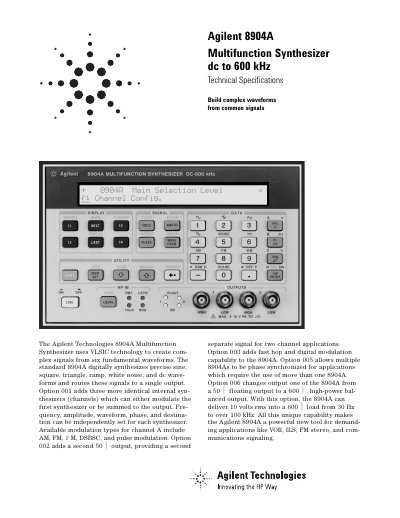

The Agilent Technologies 8904A Multifunction Synthesizer uses VLSIC technology to create complex signals from six fundamental waveforms. The standard 8904A digitally synthesizes precise sine, square, triangle, ramp, white noise, and dc waveforms and routes these signals to a single output. Option 001 adds three more identical internal synthesizers (channels) which can either modulate the first synthesizer or be summed to the output. Fre- quency, amplitude, waveform, phase, and destina- tion can be independently set for each synthesizer. Available modulation types for channel A include AM, FM, F M, DSBSC, and pulse modulation. Option 002 adds a second 50 Ω output, providing a second separate signal for two channel applications. Option 003 adds fast hop and digital modulation capability to the 8904A. Option 005 allows multiple 8904As to be phase synchronized for applications which require the use of more than one 8904A. Option 006 changes output one of the 8904A from a 50 Ω floating output to a 600 Ω, high-power bal- anced output. With this option, the 8904A can deliver 10 volts rms into a 600 Ω load from 30 Hz to over 100 kHz. All this unique capability makes the Agilent 8904A a powerful new tool for demanding applications like VOR, ILS, FM stereo, and com- munications signaling.
The Agilent 8904A Multifunction Synthesizer is a VLSIC‑based signal generator that creates sine, square, triangle, ramp, white‑noise and DC waveforms from 0 Hz up to 600 kHz. It supports a range of optional modules for additional internal channels, extra outputs, fast‑hop and digital modulation, and unit‑to‑unit phase synchronization.
The manual provides detailed technical specifications, option‑specific performance data, general operating information, ordering details, and support contacts. It also describes GPIB remote control features, environmental limits, and physical dimensions of the instrument.
| Frequency range (sine wave) | 0 Hz to 600 kHz |
|---|---|
| Frequency range (square, triangle, ramp) | 0 Hz to 50 kHz |
| AC amplitude range (sine wave) | 0 to 10 Vp‑p into 50 Ω load |
| Amplitude accuracy (0.1 Hz‑100 kHz) | ±1 % |
| Number of internal channels (standard) | 1 |
| Output impedance (standard) | ≈50 Ω ±3 % (0.1 Hz‑600 kHz) |
| Maximum output voltage (600 Ω load, Option 006) | 10 V rms |
The sine‑wave output covers 0 Hz to 600 kHz.
The instrument can output 0 to 10 Vp‑p into a 50 Ω load.
The typical output impedance is 50 Ω ±3 % from 0.1 Hz to 600 kHz.
