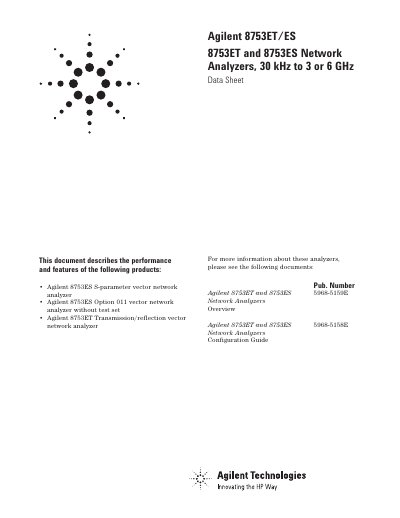

This document describes the performance and features of the following products: • Agilent 8753ES S-parameter vector network analyzer • Agilent 8753ES Option 011 vector network analyzer without test set • Agilent 8753ET Transmission/reflection vector network analyzer
This data sheet provides the performance specifications, test conditions, and optional accessories for the Agilent 8753ES and 8753ET vector network analyzers. It includes system dynamic range, directivity, source and load match, and measurement uncertainty for both 50‑ohm and 75‑ohm configurations.
The document also lists calibration kits, verification kits, test‑port cables, and connector accessories that can be used with the analyzers, along with detailed specifications for each option and test set.
| Frequency coverage | 30 kHz to 6 GHz |
|---|---|
| System dynamic range (300 kHz‑16 MHz) | 100 dB |
| Directivity (50‑ohm) | 55 dB |
| Source match (50‑ohm) | 55 dB |
| Load match (50‑ohm) | 55 dB |
| Nominal input impedance | 50 Ω (optionally 75 Ω with Option 075) |
| Reflection uncertainty (typical) | ±0.001 dB |
The 8753ES operates from 30 kHz up to 6 GHz.
The system dynamic range is 100 dB in that frequency band.
The analyzer has a nominal 50 Ω input impedance, with an optional 75 Ω configuration (Option 075).
