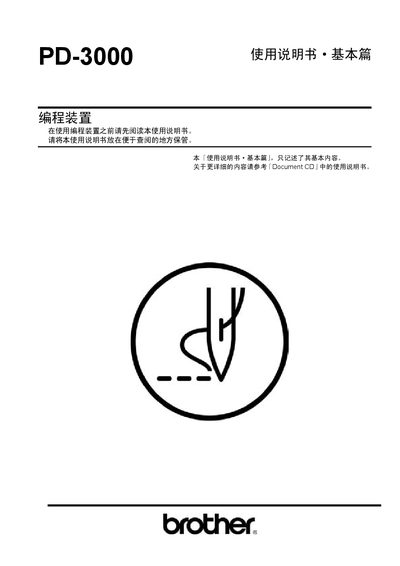

The PD-3000 programming device is an accessory for Brother industrial sewing machines. This document describes the basic features and usage precautions of the programming device.
This manual covers safety symbols, precautions, and proper operating environments for the Brother PD-3000. It explains the meaning of warning, prohibition, and mandatory symbols, and gives detailed instructions for handling the device safely, including electrical connections and AC power usage.
The document also describes the device’s components, programming functions, media formatting, and part numbers. It includes environmental limits such as temperature and humidity ranges, needle specifications, and a parts list for replacement and service. This manual is written in Japanese.
| Operating temperature range | -35 °C to (unspecified upper limit) |
|---|---|
| Operating humidity range | 45 %–85 % |
| Maximum needle count | 20,000 |
| Needle pitch range | 0.3 mm – 12.7 mm |
Stop using the device immediately, disconnect the AC power source, and contact an authorized service center.
No. The manual states that temperatures above the specified range can affect proper operation and should be avoided.
The device supports up to 20,000 needles.
