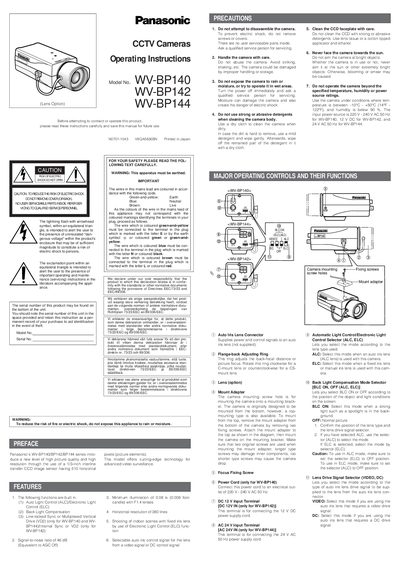

This is a user manual for WV-BP140/WV-BP142/WV-BP144 products
The manual begins with safety precautions, warning users not to disassemble the camera, avoid exposure to rain, and handle the unit carefully to prevent electric shock. It also describes the power requirements for each model (220‑240 V AC for WV‑BP140, 12 V DC for WV‑BP142, and 24 V AC for WV‑BP144) and the recommended operating temperature and humidity ranges.
Further sections cover connections (video output, power input, auto‑iris lens connector), installation of lenses, focus adjustment, and detailed technical specifications such as resolution, minimum illumination, and power consumption. Standard and optional accessories, including lens options and mounting hardware, are listed at the end.
| Minimum illumination | 0.08 Ix (0.008 foot‑candle) at F1.4 |
|---|---|
| Signal‑to‑noise ratio | 46 dB (equivalent to AGC Off) |
| Power consumption (WV‑BP140) | 2.6 W, 220‑240 V AC 50 Hz |
| Power consumption (WV‑BP142) | 175 mA at 12 V DC |
| Power consumption (WV‑BP144) | 2.1 W, 24 V AC 50 Hz |
| Dimensions (without lens) | 67 mm W × 65 mm H × 123 mm D |
| Weight (without lens, WV‑BP140) | 0.48 kg (1.06 lb) |
| Lens mount | C‑mount or CS‑mount, selectable |
| Operating temperature range | -10 °C to +50 °C (14 °F – 122 °F) |
| Maximum ambient humidity | Less than 90 % |
The cameras are designed to operate between –10 °C and +50 °C (14 °F – 122 °F).
Connect the power cord to the DC 12 V IN terminal on the rear panel of the WV‑BP142.
The camera needs at least 0.08 Ix (0.008 foot‑candle) at an aperture of F1.4.
