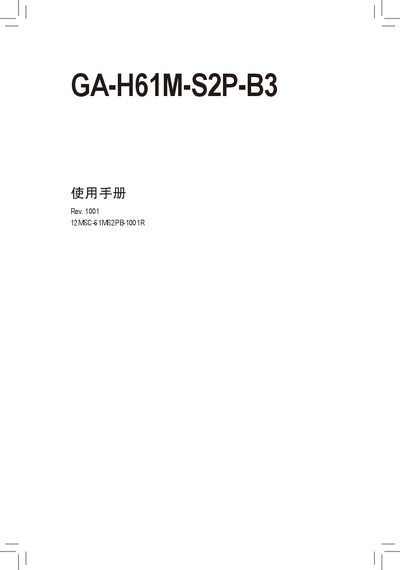

Gigabyte GA-H61M-S2P-B3 Motherboard User Manual

GA-H61M-S2P-B3 motherboard user manual, mainly introduces the hardware installation and BIOS configuration of the motherboard.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 44
File format: PDF
File size: 9.9 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Model: GA-H61M-S2P-B3
MD5 checksum: 4FF4AF6420F098DAAF9AA5F6FFE5512F
PDF: Gigabyte GA-H61M-S2P-B3 Motherboard User Manual PDF

About this manual

This manual guides users through hardware installation, including CPU, memory, and expansion cards, and details safety precautions such as disconnecting power and avoiding static discharge. It also covers BIOS configuration, power management, and driver installation.

Additional sections describe the motherboard’s connectors, supported processors, memory types, storage interfaces, and warranty information, helping users set up and maintain the GA-H61M-S2P-B3 system. This manual is written in Chinese.

What's inside

Hardware Installation
CPU and Memory Installation
Expansion Slots and Connectors
BIOS Settings
Power Management
Driver Installation
Product Specifications
Warranty and Service

Specifications

CPU Socket	LGA1155
Chipset	Intel H61
Memory Slots	2 DDR3 DIMM slots, up to 16 GB
Supported Memory Types	DDR3 1333/1066/800 MHz, non‑ECC, dual‑channel

Frequently asked questions

How many memory modules can be installed and what is the maximum capacity?

It has two DDR3 DIMM slots that can hold up to a total of 16 GB of memory.
