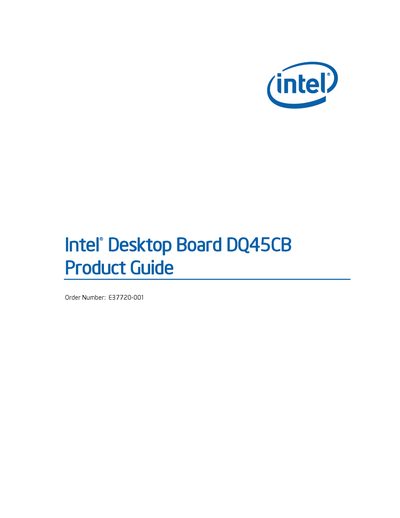

Intel DQ45CB Desktop Board Product Guide

Intel® Desktop Board DQ45CB Product Guide, introduces the characteristics of the DQ45CB motherboard

Brand: Intel
Document type: User Manual
Language: English
Pages: 86
File format: PDF
File size: 4.4 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: DQ45CB
MD5 checksum: 43A764B66BCA4F64EF507A4745656559
PDF: Intel DQ45CB Desktop Board Product Guide PDF

About this manual

This Product Guide covers the Intel DQ45CB desktop board, detailing board features, component installation, BIOS update procedures, and configuration for Intel Matrix Storage Technology RAID and Rapid Recover Technology. It also includes error messages, beep codes, and regulatory compliance information.

The guide is intended for technically qualified personnel and includes safety and FCC/Canadian compliance statements, as well as instructions for handling potential radio interference and hardware replacement.

What's inside

Preface
Desktop Board Features
Installing and Replacing Desktop Board Components
Updating the BIOS
Configuring for RAID (Intel® Matrix Storage Technology)
Configuring for Intel® Rapid Recover Technology
Error Messages and Indicators
Regulatory Compliance

Specifications

Chipset	Intel Q45 Express
Graphics Subsystem	Intel Q45 Graphics
USB Support	Hi‑Speed USB 2.0
Serial ATA	Supported
Memory Type	DDR2 DIMMs

Frequently asked questions

Can the Intel DQ45CB board be used in medical or life‑saving applications?

No, Intel products are not intended for use in medical, life‑saving, or life‑sustaining applications.

Who should install or replace components on the DQ45CB board?

The guide is intended for technically qualified personnel; it is not meant for general audiences.
