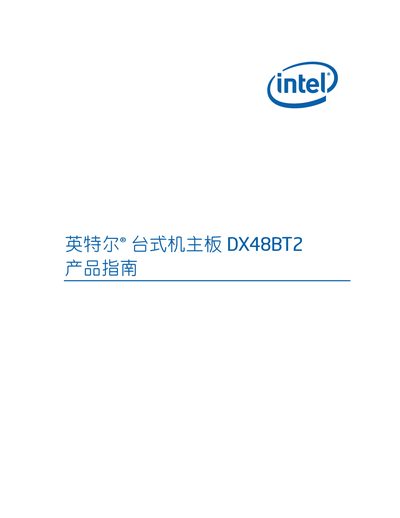

Intel® Desktop Board DX48BT2 Product Guide, introduces the features and characteristics of the product.
This guide is intended for qualified technical personnel who need detailed information on the Intel DX48BT2 desktop motherboard, including board layout, component installation, BIOS updates, and regulatory compliance. It is not aimed at general end‑users.
The document is organized into sections covering motherboard features, installation and component replacement, BIOS update procedures, RAID configuration, error messages and indicator signals, and standards/compliance details. It also includes wiring diagrams, connector pin‑outs, and safety notices. This manual is written in Chinese.
| Supported Memory Type | DDR3 DIMM |
|---|---|
| USB Support | USB 2.0 |
| SATA Support | Serial ATA (SATA) |
| LAN Subsystem | Supported |
The DX48BT2 motherboard complies with FCC Part 15 Class B digital device requirements.
