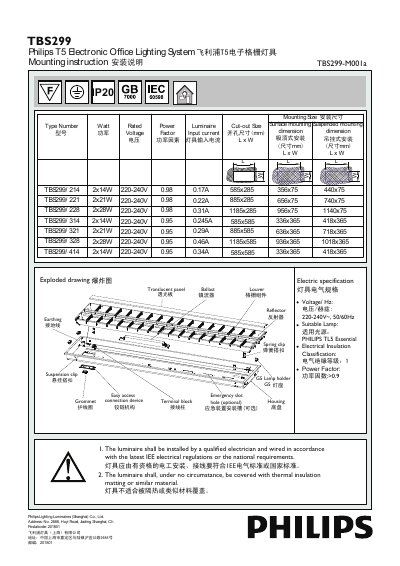

This is the installation manual for the Philips TBS299 series T5 electronic office lighting system. The series has three power options: 2x14W, 2x21W, and 2x28W. It is suitable for surface mounting and suspended mounting. The voltage is 220-240V~, 50/60Hz.
The document provides step‑by‑step instructions for installing the Philips TBS299‑M001a T5 electronic grille luminaire. It details the required electrical specifications, mounting dimensions, and the exploded parts diagram, ensuring the fixture is installed safely and in compliance with local electrical codes.
Installation methods include recessed, surface, and suspension mounting, with clear guidance on drilling holes, securing the base plate, and attaching the louver and ballast. The guide also emphasizes that only qualified electricians should perform the installation and that the luminaire must not be covered with thermal insulation material. This manual is written in Chinese.
| Wattage options | 2 × 14 W, 2 × 21 W, 2 × 28 W |
|---|
The luminaire must be installed by a qualified electrician.
No, the luminaire must not be covered with thermal insulation matting or similar material.
