Panasonic CS-JE9KB1 / CS-JE13KB1 air conditioner product specifications, including cooling capacity, energy efficiency ratio, noise, dehumidification, wind volume, refrigerant flow control device, freezing oil, refrigerant volume, product size, net weight, pipe diameter, pipe length range, indoor and outdoor unit Maximum height difference of installation, additional refrigerant amount, starting length of additional refrigerant pipe, drain pipe length, type, motor type, compressor output power, type, material, motor type, input power, output power, silent rotation / minute, low rotation / minute, medium rotation / minute, high rotation / minute

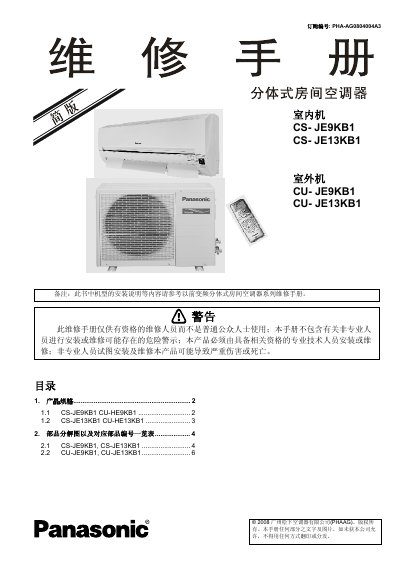

This service manual provides detailed product specifications, part diagrams, and part‑number listings for the Panasonic CS‑JE9KB1 and CS‑JE13KB1 indoor air‑conditioning units together with their matching CU‑JE9KB1 and CU‑JE13KB1 outdoor units. It is intended for qualified service technicians and includes warnings, installation limits, and electrical data.
The document contains tables of cooling/heating capacities, energy efficiency ratios, noise levels, dimensions, weight, and electrical requirements, as well as exploded‑view diagrams and part‑number tables for both indoor and outdoor assemblies. This manual is written in Chinese.
| Cooling capacity (indoor) | 2.50 kW |
|---|---|
| Heating capacity (indoor) | 3.30 kW |
| Energy efficiency ratio (EER) | 3.33 W/W |
| Maximum indoor‑outdoor height difference | 5 m |
| Net weight (indoor) | 8.5 kg |
| Input power (indoor) | 750 W |
The CS‑JE9KB1 indoor unit provides a cooling capacity of 2.50 kW.
The maximum height difference allowed for installation is 5 meters.
The indoor unit uses an induction motor (感应电动机) rated at 6 levels.
The indoor unit weighs 8.5 kg.
