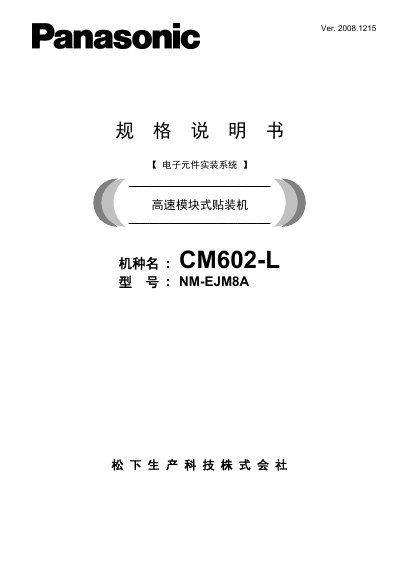

Specifications for the NM-EJM8A high-speed modular placement machine, including notes, safety precautions, and revision history.
This manual describes the CM602-L high‑speed modular surface‑mount machine, its safety precautions, legal notices, and revision history. It outlines the basic specifications, modular head configurations, and optional accessories, emphasizing interchangeability with the CM400 series.
The document details performance features such as dual placement heads per base, up to three interchangeable head types (high‑speed 12‑nozzle, universal 8‑nozzle, and multi‑function 3‑nozzle), load control from 0.5 N to 50 N, and the ability to connect up to eight base stations. It also covers board handling times, feeder options, and installation clearances.
| Maximum board length | ≤ 240 mm |
|---|---|
| Maximum connected base stations | 8 |
| Placement heads per base | 2 sets |
No, the DT50S-20 optional part cannot be connected to the CM602‑L (NM‑EJM8A).
