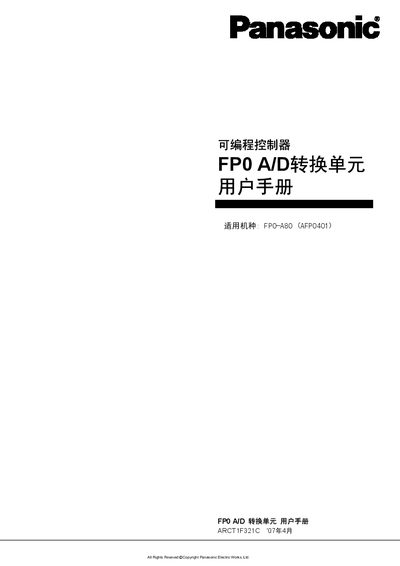

This document is the user manual for the Panasonic Electric Works Ltd. programmable controller FP0 A/D conversion unit. The manual includes safety precautions, hardware configuration and setup, wiring methods, I/O assignment, and maintenance instructions for the product.
This manual covers safety precautions, hardware description, and wiring methods for the FP0‑A80 A/D conversion unit. It explains the function of each part, the analog input terminal layout, and how to set the input range switch for voltage or current mode.
Further sections detail the A/D conversion characteristics, averaging of voltage/current ranges, assignment and programming of UO numbers, and provide a performance specifications table and unit dimensions. Compatibility limits and differences from earlier models (e.g., FP0‑A21) are also described. This manual is written in Chinese.
| Number of analog input channels | 8 |
|---|---|
| Power supply voltage | 24 VDC |
| Input terminal type | Phoenix Contact MC1.5/9 - ST - 3.5 (product no. 1840434) |
| Maximum number of combined units | 3 |
| Input range setting switch function | Switches between voltage and current input modes |
The unit requires a 24 VDC power supply.
It provides eight analog input channels.
Yes, up to three units can be combined with other expansion or high‑function units.
