This document describes the specifications and features of the PHAAG0804004A3. The product features a detachable panel, compact design, high-efficiency air circulation, and high-efficiency air dust filter.

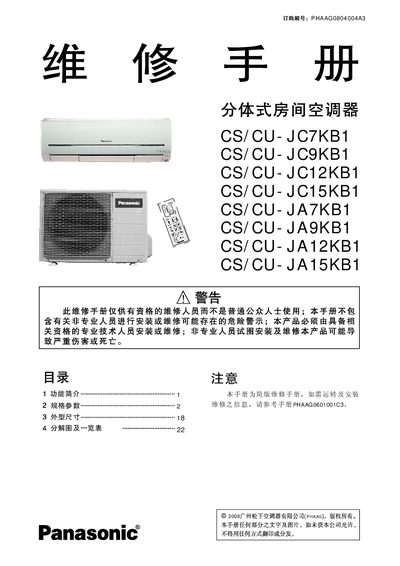

This service manual provides detailed repair instructions, safety warnings, and technical data for the Panasonic CS/CU-JC7KB1 split‑type air‑conditioning unit. It includes specifications such as cooling/heating capacity, de‑humidification rate, electrical requirements, and airflow details.
The document also contains exploded diagrams, part numbers, and a comprehensive parts replacement table for the outdoor unit, intended for use by qualified service technicians only. This manual is written in Japanese.
| Cooling capacity | 2.10 kW |
|---|---|
| Heating capacity | 2.35 kW |
| Dehumidification rate | 1.2 L/h |
Only qualified service technicians may install or repair the unit, as it contains safety warnings that require professional handling.
The parts replacement table for the outdoor unit is provided at the end of the manual under "部品更換一葛表(室外机)".
