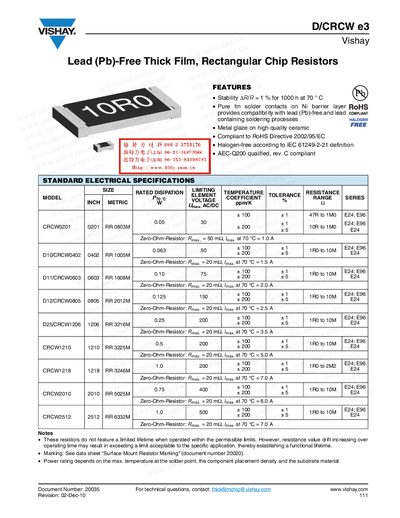

The document describes the features and characteristics of Vishay's lead-free thick film rectangular chip resistors, such as stability, compatibility with lead-free and lead-containing soldering processes, metal glaze, compliance with RoHS directive, and halogen-free. The document also provides the rated power, limiting element voltage, temperature coefficient, tolerance, and resistance range for different sizes and models of resistors.
The D/CRCW e3 series are lead‑free thick‑film rectangular chip resistors offered by Vishay. They comply with RoHS, IEC 60286‑3 packaging standards and are available in a wide range of sizes from 0201 to 2512.
The document provides electrical specifications, dimensional data, packaging options, derating curves and test procedures required for reliable use in electronic assemblies.
| Stability (AR/R) | 1 % for 1000 h at 70 °C |
|---|---|
| Insulation Resistance | >10¹⁰ Ω |
The resistors have a stability of 1 % AR/R for 1000 hours at 70 °C.
They are supplied on paper tape on reel or blister tape on reel.
