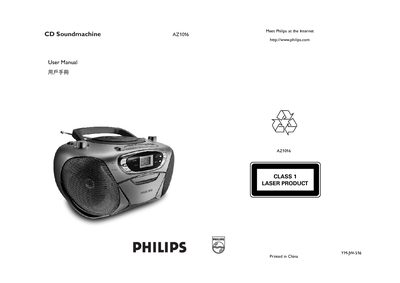

This manual explains how to operate the AZ1016 CD Soundmachine, covering source selection, volume and bass control, FM/AM tuning, CD playback, cassette recording, and programmable track functions. It also details battery installation, power‑supply options, and recommended accessories.
Safety guidelines, maintenance procedures, and troubleshooting tips are included to help keep the unit operating reliably. Technical specifications such as power output, frequency ranges, and signal‑to‑noise ratios are listed for reference. This manual is written in Chinese.
| Output power (RMS) | 2 x 1 W (1 kHz/10 % THD/8 Ω) |
|---|---|
| FM wave range | 87.5‑108 MHz |
| AM (MW) wave range | 531‑1602 kHz |
| Signal‑to‑noise ratio (CD player) | ≥ 45 dB |
| Channel separation | ≥ 40 dB (1 kHz) |
| Harmonic distortion | < 1 % (10 kHz, –20 dB) |
| Programmable tracks | Up to 20 |
| Power consumption (active) | 12 W |
| Power consumption (stand‑by) | 2 W |
| Dimensions (W × H × D) | 290 × 150 × 212 mm |
| Weight (without packaging) | 2.0 kg |
The AZ1016 can store up to 20 programmable tracks.
It uses six 1.5 V R‑14, UM‑2 or C‑type batteries.
The unit consumes 12 W during active use.
