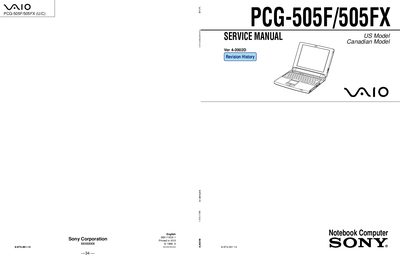

This is a repair manual for a Sony PCG-505F/505FX notebook computer
This service manual provides detailed instructions for repairing the Sony PCG-505F/505FX VAIO notebook. It includes safety cautions, recommended parts, and step‑by‑step procedures for disassembly and reassembly.
The document is organized into chapters on removal, self‑diagnostics, block diagrams, frame‑harness diagrams, exploded views with parts lists, and a revision history. It also contains specific handling guidelines for components such as the lithium‑ion battery, hard‑disk drive, and soldering operations.
| Battery type | nickel-hydrogen battery |
|---|
Obey all caution markings, use only designated parts, replicate the original layout when mounting parts, and inspect the unit after service.
The tip should be set to about 270 °C.
