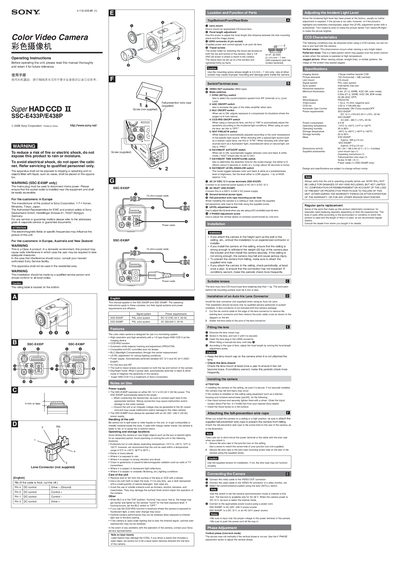

This file is the SSC-E438P manual, which contains product safety warning information, as well as product usage precautions and other information.
This manual provides detailed operating instructions for the Sony SSC‑E433P and SSC‑E438P color video cameras. It includes safety warnings, power requirements, installation guidelines, lens mounting procedures, and adjustments for day/night and white‑balance settings.
The document also lists technical specifications such as imaging device type, resolution, illumination levels, and environmental limits, as well as recommended maintenance and regular part replacement information.
| Imaging device | 1/3 type interline transfer CCD |
|---|---|
| Picture elements | 752 (horizontal) x 582 (vertical) |
| Lens mount | CS‑mount |
| Signal system | PAL color system |
| Sync system | Internal/AC line lock |
| Horizontal resolution | 540 lines |
| Minimum illumination (color mode) | 0.4 lx (F1.2, 50IRE, AGC ON) |
| Minimum illumination (BAY mode) | 0.05 Ix (F1.2, 50IRE, AGC ON) |
| Signal‑to‑noise ratio | 50 dB (AGC OFF) |
| Video output | 1 Vp‑p, 75 Ω, negative sync |
| Power requirements (SSC‑E433P) | DC 12 V ±10% / AC 24 V ±10%, 50 Hz |
| Power consumption | 40 W |
| Operating temperature | ‑10 °C to +50 °C (14 °F to 122 °F) |
| Operating humidity | 20 % to 80 % |
| Storage temperature | ‑40 °C to +60 °C (40 °F to 140 °F) |
| Storage humidity | 20 % to 95 % |
| Mass (SSC‑E433P) | Approx. 390 g (14 oz) |
| Mass (SSC‑E438P) | Approx. 410 g (14 oz) |
| Dimensions | 60 × 54 × 126.5 mm (2" × 2" × 5") |
The SSC‑E433P can be powered by DC 12 V ±10% or AC 24 V ±10% (50 Hz), while the SSC‑E438P must be powered by AC 220‑240 V ±10% (50 Hz).
Installation must be performed by qualified personnel, avoid exposure to rain or moisture, secure the camera with the supplied fall‑prevention wire rope, and ensure the mounting surface can support the camera’s weight.
Use the DAY/NIGHT AUTO/OFF switch; setting it to ON automatically toggles between color and black‑and‑white mode.
Adjust the V PHASE adjustment screw to correct vertical phase when the picture rolls vertically.
