This document provides detailed information on the features and characteristics of the products included on the supplied software disc.

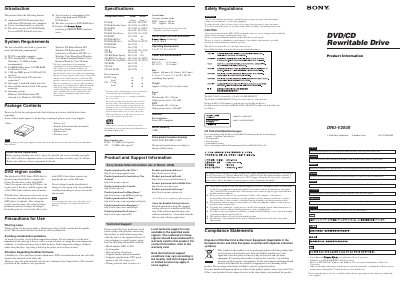

The Sony DRU-V200S is an internal DVD/CD rewritable drive that supports Serial ATA interface and can write to a wide range of DVD and CD media, including DVD+R 20×, DVD‑R Dual Layer, DVD‑RW, DVD‑RAM and CD‑R/‑RW at high speeds. The manual provides system requirements, installation instructions, safety precautions, region‑code settings, and detailed technical specifications.
Key sections cover package contents, recommended operating environment, power requirements, laser specifications, and warranty information. The document also includes troubleshooting tips and contact details for regional technical support.
| Maximum DVD write speed | 20× |
|---|---|
| Maximum CD write speed | 48× |
| Buffer capacity | 2 MB |
| Interface | Serial ATA compliant |
| Power consumption (5 V) | 1.7 A (max) |
| Power consumption (12 V) | 1.9 A (max) |
| Dimensions | 146 mm × 41.3 mm × 164.5 mm |
| Weight | 0.69 kg |
| CD laser wavelength | 780‑788 nm |
| DVD laser wavelength | 652‑663 nm |
The drive needs a 5 V supply up to 1.7 A and a 12 V supply up to 1.9 A.
