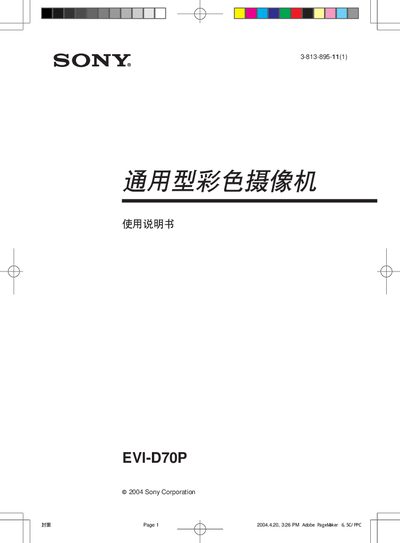

Instruction manual for EVI-D70P Universal Color Camera, introduces the features and usage of the product
This manual covers important safety information, recommended installation locations, and wiring requirements for the Sony EVI-D70P camcorder. It explains how to connect power, video, and control interfaces such as VISCA RS‑422 and RS‑232C.
The guide also describes the camera's main features, including an 18× optical zoom, a CCD sensor with roughly 410,000 pixels, and IR filter options. Detailed descriptions of the control panel functions—pan/tilt, zoom, focus, data screen, and stored position memory—help users operate the camcorder efficiently. This manual is written in Chinese.
| Optical Zoom | 18x |
|---|---|
| Image Sensor | CCD, ~410,000 pixels |
| Power Input | 12 V DC |
| Control Interface | VISCA RS‑422 (also RS‑232C) |
| Maximum Stored Positions | 6 positions |
The camcorder can store up to six positions in its memory.
It features an 18× optical zoom.
It operates from a 12 V DC power input.
Remote control is performed via the VISCA RS‑422 interface (also RS‑232C).
