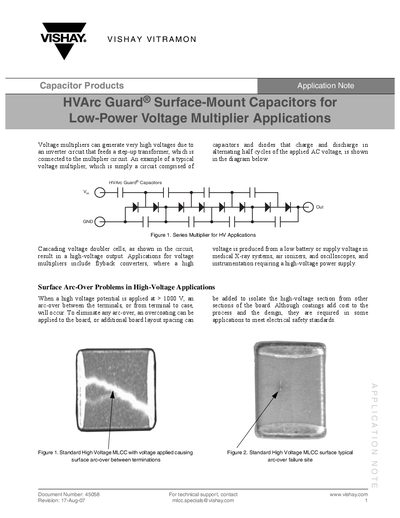

This document introduces the features and characteristics of HVArc Guard® surface-mount capacitors from VISHAY VITRAMON in low-power voltage multiplier applications.
This application note explains the benefits of Vishay's HVArc Guard® surface‑mount capacitors for low‑power voltage multiplier circuits. The devices prevent surface arc‑over without the need for conformal coating, saving board space and assembly cost, and are suitable for high‑voltage applications such as X‑ray systems, air ionizers, oscilloscopes and flyback converters.
The note provides impedance and ESR characteristics, ordering codes for NP0 and X7R dielectrics, and lists available case sizes (0805, 1206, 1210, 1808, 1812). Technical support contact information and worldwide sales offices are also included.
| Capacitance | 100 nF |
|---|---|
| Voltage rating | 500 V |
| Dielectric types | NPO, X7R |
| Case size | 0805 |
| DC voltage rating | Do not exceed rating |
They are intended for low‑power voltage multiplier applications such as medical X‑ray systems, air ionizers, oscilloscopes, and flyback converters.
Their patented internal construction eliminates the need for over‑coating the component or the board, thereby preventing surface arc‑over.
Both NPO (NP0) and X7R dielectric materials are offered.
Technical support can be requested via www.vishay.com or by contacting the regional Vishay sales offices listed in the document.
